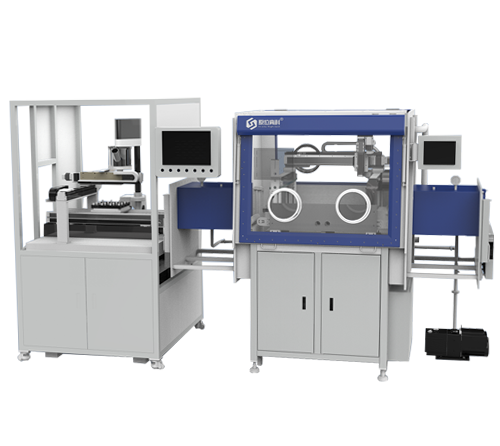

| Main ingredients | Single-station glove box (N2 environment) (optional) |
| Automated heating processing module |
| Electrical control system |
| Water-cooling machine |
| Two-stage rotary vane mechanical pump |
| High purity nitrogen source |
| Basic parameters (heating system) | Total equipment power: about 30KW (customizable) |
| Heating method: graphite heating |
| Flash mode: Maximum temperature 2500℃ |
| Insulation mode: Maximum temperature 2300℃, insulation time: ≤10s |
| Fastest heating rate: ≤1000℃/S |
| Temperature measurement method: infrared non-contact, accuracy ±1%FS |
| Single tube processing volume: 2mL |
| Single group processing volume: 2 tubes*2mL=4mL |
| Processing beat: 60s/group (excluding heating) |
| Cold vacuum degree: ≤10Pa |
| Vacuum acquisition method: two-stage rotary vane vacuum pump |
| Cooling method: water cooling |
| Water oxygen content: ≤100PPm (water oxygen purification system is required) |
| Equipment shape: length*width*height=2400*1250*1900mm |
| Total equipment weight: about 1500 Kg |
| (Different batches and configurations may vary, please refer to the actual product) |
| Operation control system | With PLC as the core control, the heating system, vacuum system, and automatic loading and unloading system are automatically executed and feedback, making the control system more coordinated, stable and reliable |
| The system is integrated on the touch screen, which can operate and display various working conditions, and set various information parameters (such as heating parameters, vacuum pressure, etc.) through authority. |
| The electrical control system is equipped with a visual detection system and various reliable interlocking, interlocking, protection functions, and an alarm function |
| Different parameter formulas can be set to facilitate heat treatment of different samples |
| Data is automatically uploaded and saved |
