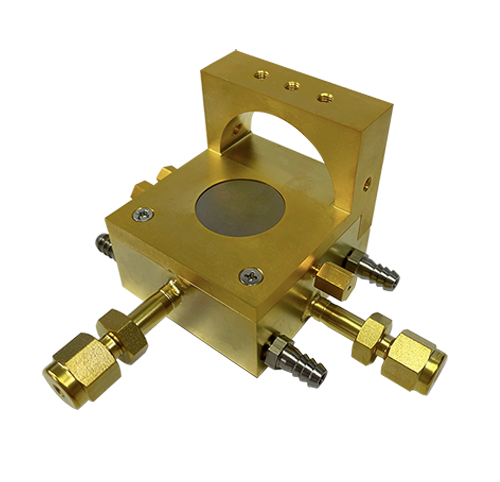

In situ XRD high-temperature reaction cell

Product introduction

The in-situ high-temperature XRD reaction cell is used for in-situ XRD testing and characterization of atmospheric and high-temperature gas-solid chemical reactions, with beryllium window/polyimide film as the window material; Equipped with a temperature controller/Joule heating power supply, it generates high temperature and effectively exchanges heat with the sample stage and samples inside the sample stage. The temperature of the samples in the reaction tank is controlled through a temperature control system; Equipped with a cooling circulation system and a circulating water cooler, the reaction tank shell is cooled and cooled through low-temperature circulating coolant.

Product parameter

溫度測試范圍	室溫-1200℃
池體材質	哈氏合金C276(內嵌陶瓷)/SUS316電鍍(內嵌陶瓷)
窗口	進口PI膜/鈹窗
控溫精度	±0.1℃
溫度均勻性	±1℃
池體外表面溫度	≤40℃
氣氛	可通氣氛
水冷配置	1200W循環水冷機
溫控配置	焦耳加熱電源系統，程序控溫，觸摸屏操作(含配套軟件)

設計溫度	600℃?
主體材質	SUS316鍍金/鍍鎳和哈氏合金C276?
溫控裝置	程序控溫、觸摸屏操作（含配套軟件）?
溫控精度	±0.1℃
X射線窗口	鈹窗?
其他	可通氣氛，可抽真空

池體材質	316L不銹鋼
XRD窗口	聚酰亞胺膜；光照窗口：石英
密封圈	氟膠圈
溫度測試范圍	常溫~300℃?
控溫精度	±0.1℃?
溫度均勻性	±1℃?
氣氛	可通氣氛
光源	可引入外部光源
溫控配置	定制溫控儀，程序控溫，觸摸屏操作(含配套軟件)?
