Product introduction of micro fixed bed catalyst evaluation device:

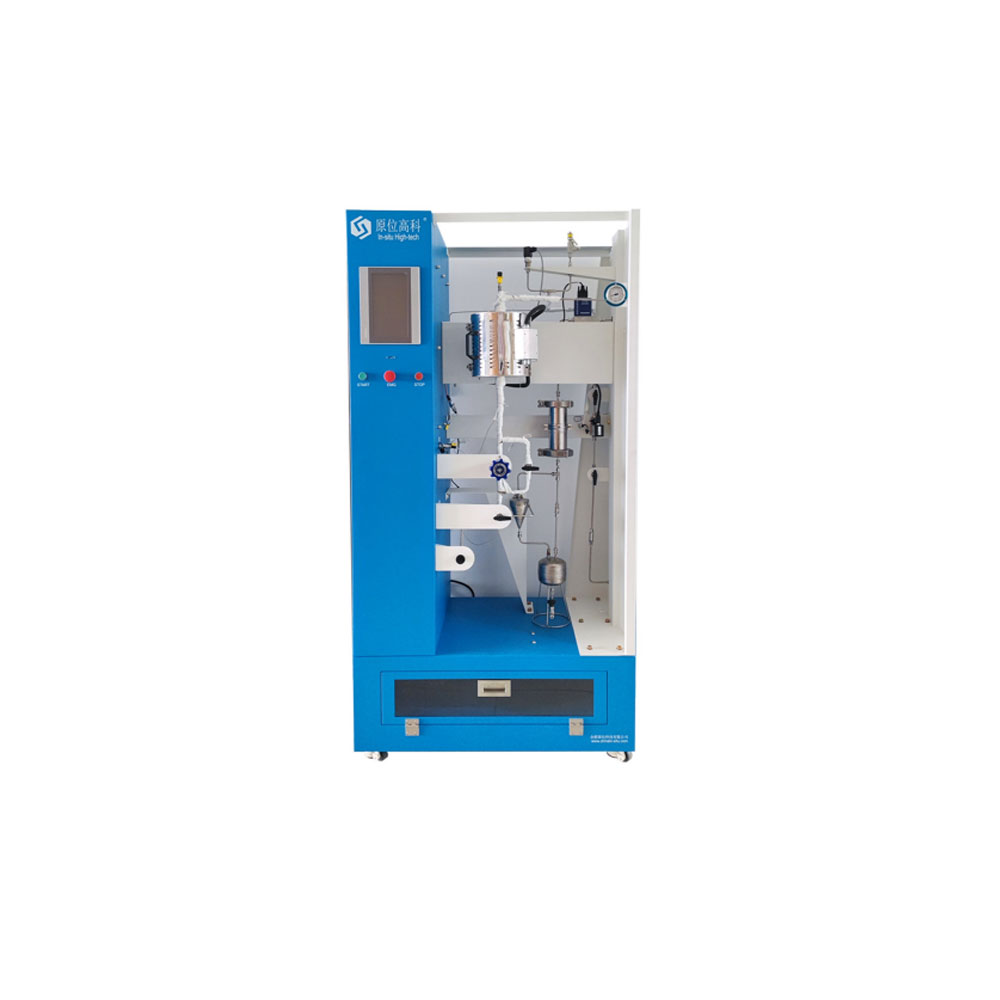

The Hefei in-situ (desktop) micro fixed bed reactor is suitable for laboratory workbenches and has the characteristics of small volume, compact structure, modular design, and easy assembly and improvement. We can customize reaction channels, number of gas-liquid paths, type and size of separation devices, and sampling analysis methods according to the reaction system, perfectly meeting the actual needs of customers

Modular: Desktop small modular, freely assembled, expanded, and improved according to the experimental system;

Accuracy: pressure ± 0.25% F.S, flow rate ± 1% F.S, temperature difference in the constant temperature zone ± 1 ° C, temperature difference between channels ± 1 ° C, temperature control accuracy ± 0.1 ° C;

Applicability: It can achieve multi gas phase, gas-liquid two-phase, and gas-liquid-solid three-phase reactions, and can be combined with GC/MS/IR to achieve online detection;

Convenience: The temperature is controlled by PID to ensure stable reaction temperature and can output continuously to observe changes in reaction heat. The data collection and control are integrated on the touch screen, with a simple and friendly operating interface, making it convenient and fast to use. Can achieve automatic product sampling and analysis, achieving continuous operation 24/7 without manual intervention;

Safety: Electrical safety interlocking, adopting a safety design combining software and hardware, with overpressure and overtemperature alarms, and automatically stopping work if left untreated; Misoperation protection; Power outage, gas outage handling, etc.
